Smart Image Processor PHP 2 Manual

Smart Image Processor PHP 2 is DMXzone’s most powerful Image Resize, Enhancement and Manipulation extension that allows you to quickly and easily process multiple images, create thumbnails, use image options such as crop, flip, rotate, sharpen and blur, or create grayscale images. You can even brand your image by including a watermark or text.

Smart Image Processor PHP 2 is compatible with GD2 and ImageMagick! Most PHP servers already have GD2 or ImageMagick installed but our extension enables you to utilize the full power of those graphical components like never before! By empowering true image manipulation without any hand coding Smart Image Processor PHP 2 will change the way you enhance your images forever!

Applying the Smart Image Processor PHP 2 Extension – A basic resize

Introduction

In this tutorial we're going to resize an image that is uploaded with Pure PHP Upload 2 while maintaining the aspect ratio.

Start: Original image

Resized Image (Width 200, Height 200, Checked Keep Aspect Ratio)

We also show what happens when you uncheck the Aspect ratio:

Example: Resized Image (notice that the image is a bit squeezed)

After that we show you how to crop an image

The area inside the red square represents the cropped image; the total image above resembled the original image size.

We also show you how to combine the crop and resize options.

We'll explain the process in a step by step tutorial.

Resizing and cropping

Create a new PHP page
Create a new or open an existing PHP file where the Pure PHP Upload Server behavior and the Resize Uploaded Files server behaviors need to be applied to.
First apply the Pure PHP Upload behavior
Make sure you have a form with a File Upload Field and a Submit button.

1. From the Server Behaviors panel select DMXzone - Pure PHP Upload 2.
2. Browse to the folder where the images will need to be uploaded to.
3. Leave Go To After Uploading empty, since we are not done after this.
4. Click CTRL-S (Command S for Mac users) to save the file.

Pure PHP Upload 2 settings
Go to the Smart Image Processor PHP 2 behavior panel
You will find the Smart Image Processor PHP 2 panel under Server Behaviors. Click on the + sign, DMXzone, Smart Image Processor PHP 2.

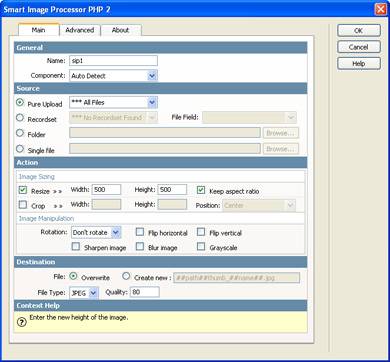

This will Open the Smart Image Processor PHP 2 Panel.

Set the General Options
The name field is created by default to identify the Server Behavior, we don't change the name as we don't need to. The server component select box is set to Auto Detect by default, you should only change this if you want to use a specific component. Check the Absolute Path if the server does not support parent paths. We leave the setting on Auto Detect and set the Path to Relative. Make sure that the Name starts with a $ to comply to PHP naming conventions.

Define the Source Options
Select the Pure PHP Upload 2 option for uploading files with Pure PHP Upload 2 that need to be resized. You can apply the resize action to all file fields field by choosing the *** All Files option. In our case there is only one upload field so we leave the dropdown at file. You can also choose a Recordset, Folder or Single file as a source to resize your images from. We'll get back to these options later.

Setting the Action options - Resize
To resize an image, select the Resize option and enter the desired Width and Height of the resized image. Select the keep aspect ratio option to maintain the dimensions of the image when resizing.

Set your Destination options, save and upload the files
Check select the Overwrite option if you only want to save the resized image or check the Create New option and enter the changes that need to be made to the path, filename or file extension.
The image can be saved as a jpeg, gif or png. To apply the Smart Image Processor PHP 2 behavior click OK. You will need to save the file in your site. Press F12 tot test the result in your browser
Setting the Action options - Crop
To crop an image, open the Smart Image Processor PHP 2 server behavior again, select the crop option and enter the desired Width and Height of the cropped image. Select the Position option to determine the location to crop from.

Set your Destination options, save and upload the files
Check select the Overwrite option if you only want to save the resized image or check the Create New option and enter the changes that need to be made to the path, filename or file extension.
##path## is the path of the original file, ##name## is the filename without the extension, you can add ##filename## for the complete filename.

Here are a few examples:
If your original file is "c:\images\dmxzone.jpg" and you want the filename and you to set the file to "c:\images\thumb_dmxzone.jpg" (or /home/user/www/images/thumb_dmxzone.jpg for Linux) enter ##path##thumb_##filename## in the Create new field.
If you want to create a suffix like "c:\images\dmxzone_small.jpg" (or /home/user/www/images/dmxzone_small.jpg for Linux) enter ##path####name##_small.jpg in the Create new field.
If you want to create a new folder "c:\images\thumbs\dmxzone.jpg" (or /home/user/www/images/thumbs/dmxzone.jpg for Linux) enter ##path##thumbs\##filename## in the Create new field.

The image can be saved as a jpeg, gif or png. To apply the Smart Image Processor PHP 2 behavior click OK. You will need to save the file in your site. Press F12 tot test the result in your browser
Setting the Action options - Combing the Resize and Crop options
You can also resize an image and the crop it. For instance if you have an image from 400 by 300 and you want to create a square image of 200 by 200 that isn't squeezed.

Set your Destination options, save and upload the files
Check select the Overwrite option if you only want to save the resized image or check the Create New option and enter the changes that need to be made to the path, filename or file extension.
The image can be saved as a jpeg, gif or png. To apply the Smart Image Processor PHP 2 behavior click OK. You will need to save the file in your site. Press F12 tot test the result in your browser

Setting the Action options - Image Manipulation Options
Rotate, flip, sharpen or blur the image if you like too, the options speak for themselves. You can also create black and white images by checking the grayscale options.
Set your Destination options, save and upload the files
Check select the Overwrite option if you only want to save the resized image or check the Create New option and enter the changes that need to be made to the path, filename or file extension.
The image can be saved as a jpeg, gif or png. To apply the Smart Image Processor PHP 2 behavior click OK. You will need to save the file in your site. Press F12 tot test the result in your browser
